Media Operations

Supported Storage Options

Local: Allows to load data from application local storage
Azure Blob Storage (opens in a new tab): Allows to load data from Azure Blob Storage
Amazon S3 (opens in a new tab): Allows to load data from Amazon S3 Buckets
Google Cloud Storage (opens in a new tab): Allows to load data from Google Cloud Storage

Media operation should be used to load a single media or a list of media. The media is at first loaded and then optionally processed (eg. resize image).

These operations are supposed to be followed by a generate embedding from media operation. The media operations output payload is ready to be used by the generate embedding from media operation without any transformation.

Media | Load single

The [Media] Load single operation load a media and optionally process it (for example to resize an image).

How to Use

Add Media to Store

The [Media] Load single operation should be followed by an [Embedding] Generate from media operation. The output payload is ready to be used by the [Embedding] Generate from media operation without any transformation.

Input Fields

Module Configuration

This refers to the MuleSoft Vectors Storage Configuration set up in the Getting Started section.

Media Fields

Context Path: Behaviour changes based on storage type.
- Local: Contains the path for the documents to be ingested into the embedding store. Ensure the file path is accessible. You can also use a DataWeave expression for this field, e.g., mule.home ++ "/apps/" ++ app.name ++ "/".
- AZURE_BLOB: Contains container name and blob item name in the following format <container-name>/<blob-item-name> (eg. ms-vectors-container/invoicesample.pdf, ms-vectors-container/folder/invoicesample.pdf, ...)
- S3: Contains AWS S3 Bucket and AWS S3 Object Key in the following format s3://<s3-bucket>/<s3-object-key> (eg. s3://ms-vectors-bucket/setup.adoc, s3://ms-vectors-bucket/folder/setup.adoc,...)
Media Type: Contains the type of the media to be loaded and processed.
- image: .png, .jpeg, .jpg, .gif, .bmp

Processor Settings:
- Target Width (pixels): Contains the width of the image in pixels.
- Target Height (pixels): Contains the height of the image in pixels.
- Compression Quality: The compression quality for media (between 0.0 and 1.0, where 1.0 is highest quality).
- Scale Strategy:
  - Fit (Default): Resizes the image to fit within the specified width and height while maintaining the aspect ratio. The image is padded with a background color to fit the specified width and height.
  - Fill: Resizes the image to fit within the specified width and height while maintaining the aspect ratio. The image is cropped to fill the target width and height.
  - Stretch: Resizes the image to fit within the specified width and height without maintaining the aspect ratio.

XML Configuration

Below is the XML configuration for this operation:

<ms-vectors:media-load-single
  doc:name="[Local] [Media] Load single"
  doc:id="365baf3a-b43c-4b2d-ada6-d2e201ff82fb"
  contextPath="#[payload.contextPath]">
    <ms-vectors:media-processor-parameters>
        <ms-vectors:image-processor-parameters targetWidth="512" targetHeight="512" compressionQuality="1"/>
    </ms-vectors:media-processor-parameters>
</ms-vectors:media-load-single>

Output Fields

Payload

This operation responds with a json payload.

Example

Here an example of the JSON output.

{
    "metadata": {
        "absolute_directory_path": "/Users/tbolis/Downloads",
        "source": "file:///Users/tbolis/Downloads/4866963-200.png",
        "media_type": "image",
        "mime_type": "image/png",
        "file_type": "png",
        "file_name": "4866963-200.png"
    },
    "base64Data": "iVBORw0KGgoAAAANSUhEUgAAAgAAAAIACAI..."
}

metadata: The metadata key-value pairs.
- absolute_directory_path: The full path to the file which contains relevant text segment.
- source: File path set by cloud storage services (eg. Amazon S3)
- media_type: The type of the media (eg. image).
- mime_type: The media mime type.
- file_Type: The file/source type.
- file_name: The name of the media file.
base64Data: The base64 encoded media data.

Attributes

MediaResponseAttributes:
- fileType: Contains the type of the document to be ingested into the embedding store.
- contextPath: Behaviour changes based on storage type.
- media_type: The type of the media (eg. image).
- mime_type: The media mime type.
- url: The URL of the media file.

Media | Load list

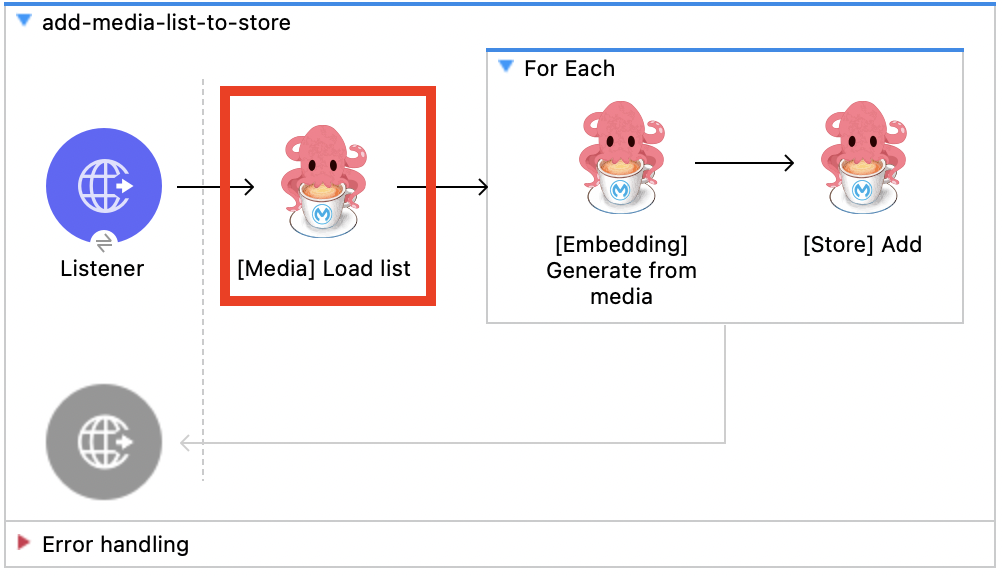

The [Media] Load list operation load a list of media and optionally process them (for example to resize all images to the same size).
